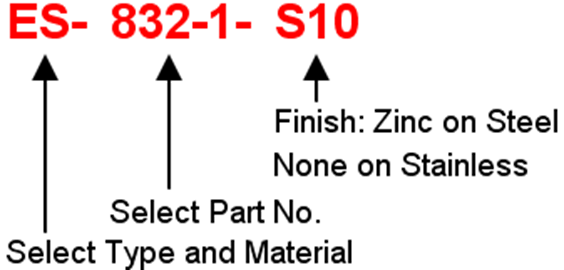

How to order Standard Self-Clinching Blind Fasteners
The SanKong Electronic Hardware Collection of Self-Clinching Blind Fasteners are Standard dimensioned parts, custom modified are available, to used on Aerospace, Automotive , Computers, Construction Equipment, Off-Highway Vehicles, Farm Equipment, Electronic Enclosures, Exhibits/Signs, Food Equipment, Furniture, HVAC, Industrial Enclosures, Lawn/Garden Equipment, Medical, Networking, Railway, Telecommunications.

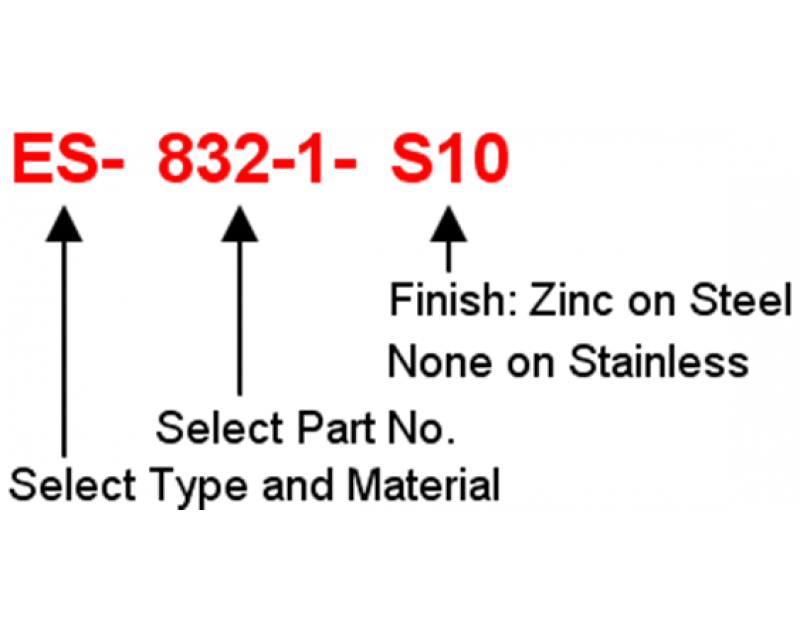

How to order Standard Self-Clinching Blind Fasteners

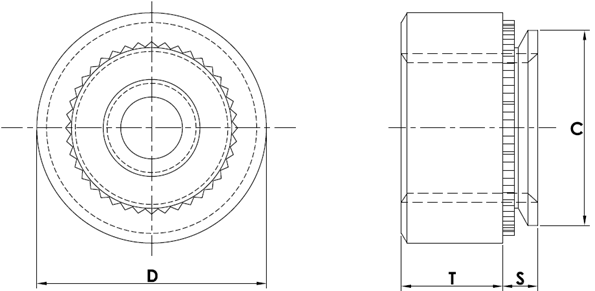

| Type | Part No. | Thread Size |
A Max. |
Min Sheet Thickness |
Hole Size in Sheet +.003 -.000 |
B Max. |
C Max. |
E ±.010 |
F Min. |
L Max. |
T ±.010 |
Min. distance centre line hole to sheet edge |
|
| Material | |||||||||||||
| Carbon Steel |
Stainless Steel |
||||||||||||
| EB | EBS | 440-1 | 4-40 | .040 | .040 | .166 | .150 | .165 | .250 | .210 | .335 | .380 | .190 |
| 440-2 | .056 | .056 | |||||||||||
| EB | EBS | 632-1 | 6-32 | .040 | .040 | .1875 | .169 | .187 | .280 | .230 | .335 | .380 | .220 |
| 632-2 | .056 | .056 | |||||||||||
| EB | EBS | 832 | 8-32 | .040 | .040 | .213 | .204 | .212 | .310 | .280 | .385 | .440 | .270 |
| 832-2 | .056 | .056 | |||||||||||
| EB | EBS | 032-1 | 10-32 | .040 | .040 | .250 | .235 | .249 | .340 | .280 | .385 | .440 | .280 |
| 032-2 | .056 | .056 | |||||||||||
| EB | EBS | 0420-1 | 1/4-20 | .560 | .560 | .344 | .305 | .343 | .430 | .310 | .500 | .560 | .340 |
| 0420-2 | .090 | .090 | |||||||||||
| Type | Part No. | Thread Size |
A Max. |
Min Sheet Thickness |
Hole Size in Sheet +.008 -.000 |
B Max. |
C Max. |
E ±.025 |
F Min. |
L Max. |
T ±.025 |
Min. distance centre line hole to sheet edge |
|
| Material | |||||||||||||
| Carbon Steel |
Stainless Steel |
||||||||||||
| EB | EBS | M3-1 | M3x0.5 | 1 | 1 | 4.25 | 3.84 | 4.22 | 6.35 | 5.3 | 8.5 | 9.6 | 4.8 |
| M3-2 | 1.4 | 1.4 | |||||||||||
| EB | EBS | M4-1 | M4x0.7 | 1 | 1 | 5.4 | 5.2 | 5.38 | 7.95 | 7.1 | 9.8 | 11.2 | 6.9 |
| M4-2 | 1.4 | 1.4 | |||||||||||
| EB | EBS | M5-1 | M5x0.8 | 1 | 1 | 6.4 | 6.02 | 6.38 | 8.75 | 7.1 | 9.8 | 11.2 | 7.1 |
| M5-2 | 1.4 | 1.4 | |||||||||||
| EB | EBS | M6-1 | M6x1 | 1.4 | 1.4 | 8.75 | 7.8 | 8.72 | 11.1 | 7.8 | 12.7 | 14.3 | 8.6 |
| M6-2 | 2.3 | 2.3 | |||||||||||
