The SanKong Electronic Hardware Collection of Washer face Thumb Screw are American Standard dimensioned parts, custom modified are available, to used on Aerospace, Automotive , Computers, Construction Equipment, Off-Highway Vehicles, Farm Equipment, Electronic Enclosures, Exhibits/Signs, Food Equipment, Furniture, HVAC, Industrial Enclosures, Lawn/Garden Equipment, Medical, Networking, Railway, Telecommunications.
Custom modified products are available.

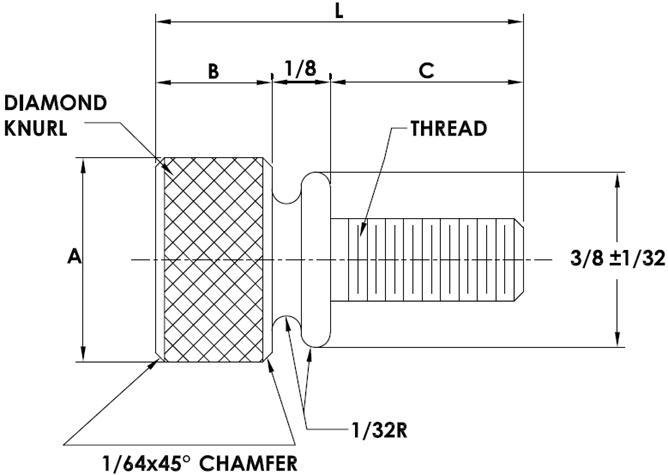

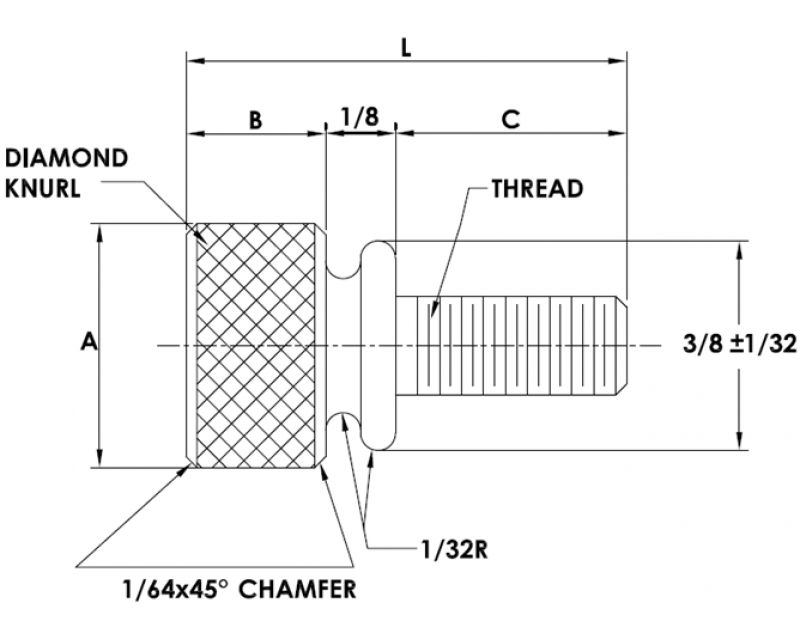

Part No. | Thread Size |
A +.020 -.000 |
B +.015 -.015 |
C +.010 -.010 |
L +.015 -.015 |
WFTS-44001 | 4-40 | 3/8 | 3/16 | 5/16 | 5/8 |
WFTS-44002 | 4-40 | 3/8 | 3/16 | 3/8 | 11/16 |
WFTS-44003 | 4-40 | 3/8 | 3/16 | 7/16 | 3/4 |
WFTS-63201 | 6-32 | 3/8 | 3/16 | 3/8 | 11/16 |
WFTS-63202 | 6-32 | 3/8 | 3/16 | 7/16 | 3/4 |
WFTS-63203 | 6-32 | 3/8 | 3/16 | 1/2 | 13/16 |
WFTS-83201 | 8-32 | 7/16 | 3/16 | 3/8 | 11/16 |
WFTS-83202 | 8-32 | 7/16 | 3/16 | 1/2 | 13/16 |
WFTS-83203 | 8-32 | 7/16 | 3/16 | 5/8 | 15/16 |
WFTS-103201 | 10-32 | 7/16 | 3/16 | 3/8 | 11/16 |
WFTS-103202 | 10-32 | 7/16 | 3/16 | 1/2 | 13/16 |
WFTS-103203 | 10-32 | 7/16 | 3/16 | 5/8 | 15/16 |
WFTS-142001 | 1/4-20 | 1/2 | 1/4 | 3/8 | 3/4 |
WFTS-142002 | 1/4-20 | 1/2 | 1/4 | 1/2 | 7/8 |
WFTS-142001 | 1/4-20 | 1/2 | 1/4 | 5/8 | 1 |
WFTS-142004 | 1/4-20 | 1/2 | 1/4 | 3/4 | 1/1/8 |
