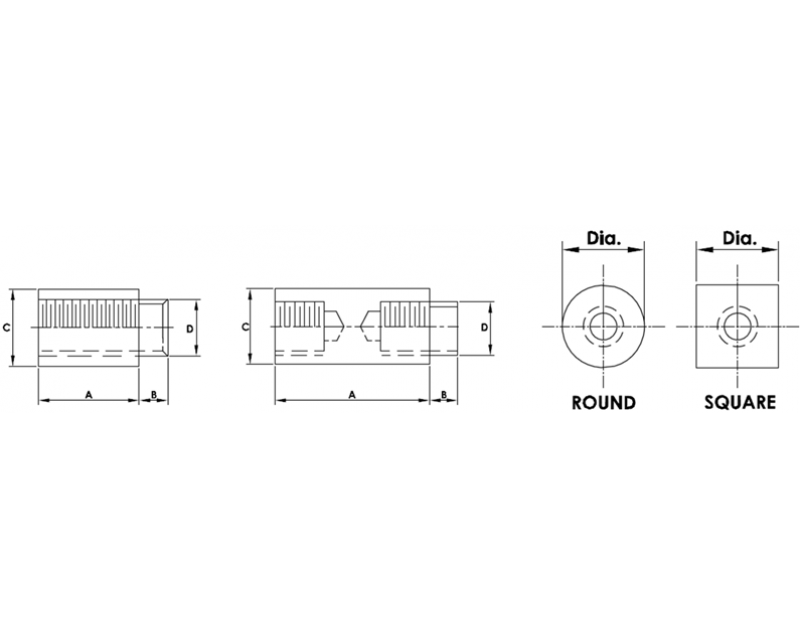

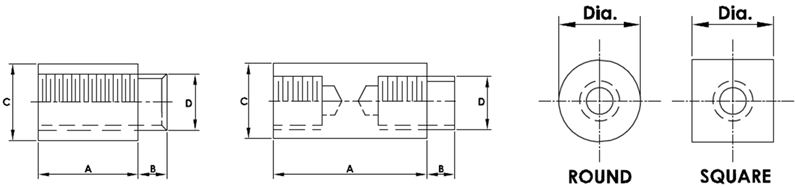

Foreword(METRIC STANDARD SWAGE STANDOFFS)

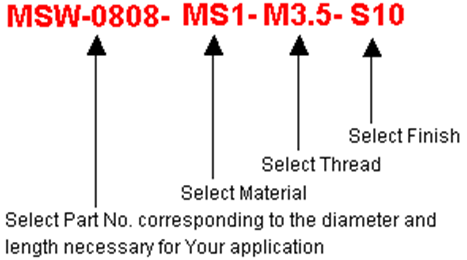

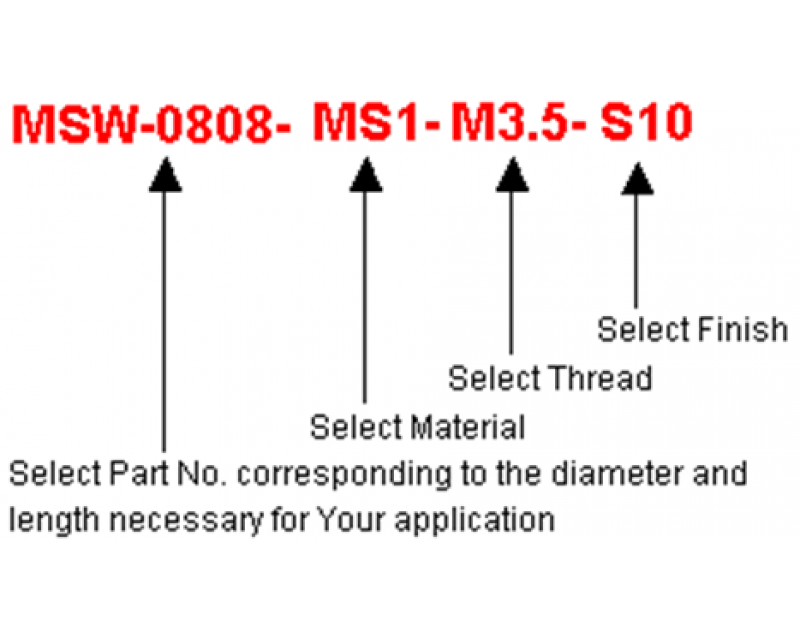

How to order Metric Standard Swage Standoffs

Tolerances:
Diameter: Standard commercial bar stock tolerances.
Length: 0 UP to 100 ± 0.13
From 100 to 150 ± 0.2
Over 150 ± 0.25
Threads:
External - Standard Unified Class 6g
Internal - Standard Unified Class 6h


Material Description	Code
	Round	Square
Carbon Stell	MS1	MS2
300 Series Stainless Steel	MSS1	MSS2
Aluminum	MA1	MA2
Brass	MB1	MB2
Nylon	MN1	MN2



Code	Thread
M2.5	M2.5x0.45
M3	M3x0.5
M3.5	M3.5x0.6
M4	M4x0.7
M5	M5x0.8



Code	Shank Length	Board Thickness
A	1.9	0.8
B	2.7	1.6
C	3.4	2.4
D	4.2	3.2

Finish Description	Code
Nickel Plated	S1
Chrome Plated	S2
Satin Chrome	S6
Zinc Plated	S10
Zinc Yellow Chromate	S11
No Finish	S14
Black Oxide	S22
Black Zinc	S23
Passivate	SB5
Anodize Clear	SA1
Glossy Anodize Clear Clear	SA2
Anodize Black	SA3
Glossy Anodize Black	SA4
Clear lridite	SA5
