Custom fabrications can be manufactured to meet your special needs.

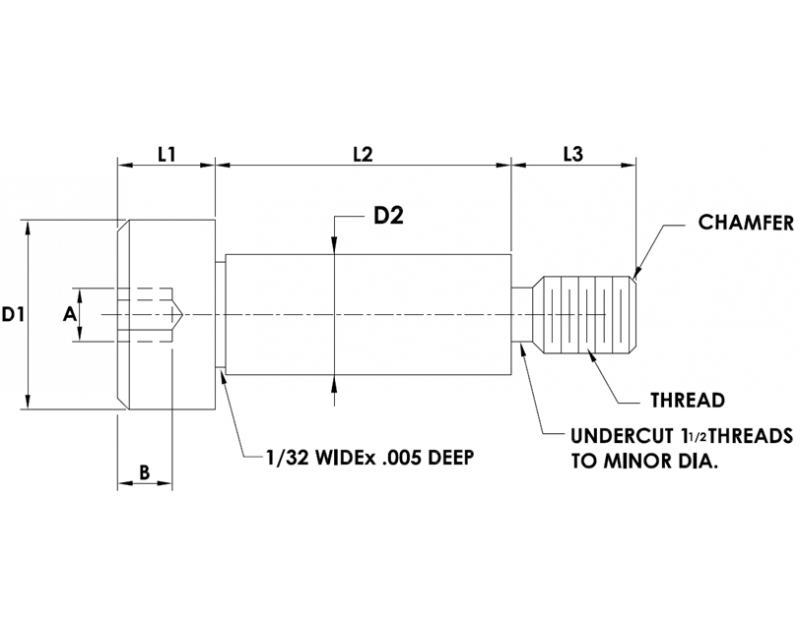

| Part No. | Thread Size |
D1 | D2 | L1 | L2 | L3 | A | B |
| +.004 | +.000 | +.010 | +.002 | +.005 | +.002 | MIN. | ||
| -.004 | -.001 | -.010 | -.000 | -.005 | -.000 | |||
| PS-SO-103201 | 10-32 | 3/8 | .2495 | 3/16 | .1250 | 1/4 | 1/8 | 3/32 |
| PS-SO-103202 | 10-32 | 3/8 | .2495 | 3/16 | .1875 | 1/4 | 1/8 | 3/32 |
| PS-SO-103203 | 10-32 | 3/8 | .2495 | 3/16 | .2500 | 1/4 | 1/8 | 3/32 |
| PS-SO-103204 | 10-32 | 3/8 | .2495 | 3/16 | .3125 | 1/4 | 1/8 | 3/32 |
| PS-SO-103205 | 10-32 | 3/8 | .2495 | 3/16 | .3750 | 1/4 | 1/8 | 3/32 |
| PS-SO-103206 | 10-32 | 3/8 | .2495 | 3/16 | .4375 | 1/4 | 1/8 | 3/32 |
| PS-SO-103207 | 10-32 | 3/8 | .2495 | 3/16 | .5000 | 1/4 | 1/8 | 3/32 |
| PS-SO-103208 | 10-32 | 3/8 | .2495 | 3/16 | .5625 | 1/4 | 1/8 | 3/32 |
| PS-SO-103209 | 10-32 | 3/8 | .2495 | 3/16 | .6250 | 1/4 | 1/8 | 3/32 |
| PS-SO-103210 | 10-32 | 3/8 | .2495 | 3/16 | .6875 | 1/4 | 1/8 | 3/32 |
| PS-SO-103211 | 10-32 | 3/8 | .2495 | 3/16 | .7500 | 1/4 | 1/8 | 3/32 |
| PS-SO-103212 | 10-32 | 3/8 | .2495 | 3/16 | .8750 | 1/4 | 1/8 | 3/32 |
| PS-SO-103213 | 10-32 | 3/8 | .2495 | 3/16 | 1.000 | 1/4 | 1/8 | 3/32 |
| PS-SO-103214 | 10-32 | 3/8 | .2495 | 3/16 | 1.250 | 1/4 | 1/8 | 3/32 |
| PS-SO-103215 | 10-32 | 3/8 | .2495 | 3/16 | 1.375 | 1/4 | 1/8 | 3/32 |
| PS-SO-103216 | 10-32 | 3/8 | .2495 | 3/16 | 1.500 | 1/4 | 1/8 | 3/32 |
| PS-SO-142001 | 1/4-20 | 7/16 | .3120 | 7/32 | .2500 | 3/8 | 5/32 | 1/8 |
| PS-SO-142002 | 1/4-20 | 7/16 | .3120 | 7/32 | .3125 | 3/8 | 5/32 | 1/8 |
| PS-SO-142003 | 1/4-20 | 7/16 | .3120 | 7/32 | .3750 | 3/8 | 5/32 | 1/8 |
| PS-SO-142004 | 1/4-20 | 7/16 | .3120 | 7/32 | .5000 | 3/8 | 5/32 | 1/8 |
| PS-SO-142005 | 1/4-20 | 7/16 | .3120 | 7/32 | .6250 | 3/8 | 5/32 | 1/8 |
| PS-SO-142006 | 1/4-20 | 7/16 | .3120 | 7/32 | .7500 | 3/8 | 5/32 | 1/8 |
| PS-SO-142007 | 1/4-20 | 7/16 | .3120 | 7/32 | .8750 | 3/8 | 5/32 | 1/8 |
| PS-SO-142008 | 1/4-20 | 7/16 | .3120 | 7/32 | 1.000 | 3/8 | 5/32 | 1/8 |
| PS-SO-142009 | 1/4-20 | 7/16 | .3745 | 7/32 | .2500 | 3/8 | 5/32 | 1/8 |
| PS-SO-142010 | 1/4-20 | 7/16 | .3745 | 7/32 | .3125 | 3/8 | 5/32 | 1/8 |
| PS-SO-142011 | 1/4-20 | 7/16 | .3745 | 7/32 | .3750 | 3/8 | 5/32 | 1/8 |
| PS-SO-142012 | 1/4-20 | 7/16 | .3745 | 7/32 | .5000 | 3/8 | 5/32 | 1/8 |
| PS-SO-142013 | 1/4-20 | 7/16 | .3745 | 7/32 | .6250 | 3/8 | 5/32 | 1/8 |
| PS-SO-142014 | 1/4-20 | 7/16 | .3745 | 7/32 | .7500 | 3/8 | 5/32 | 1/8 |
| PS-SO-142015 | 1/4-20 | 7/16 | .3745 | 7/32 | .8750 | 3/8 | 5/32 | 1/8 |
| PS-SO-142016 | 1/4-20 | 7/16 | .3745 | 7/32 | 1.000 | 3/8 | 5/32 | 1/8 |
