Custom fabrications can be manufactured to meet your special needs.

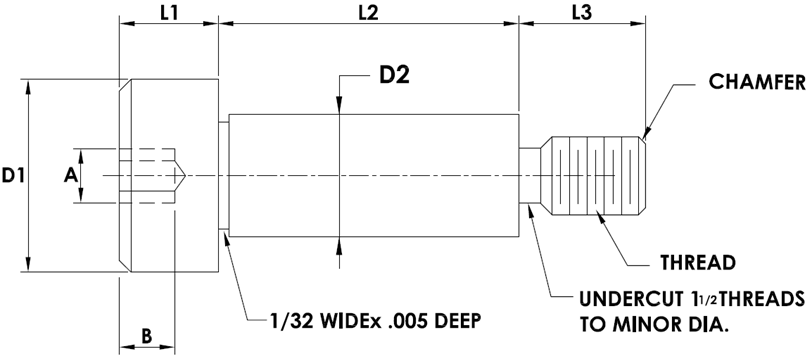

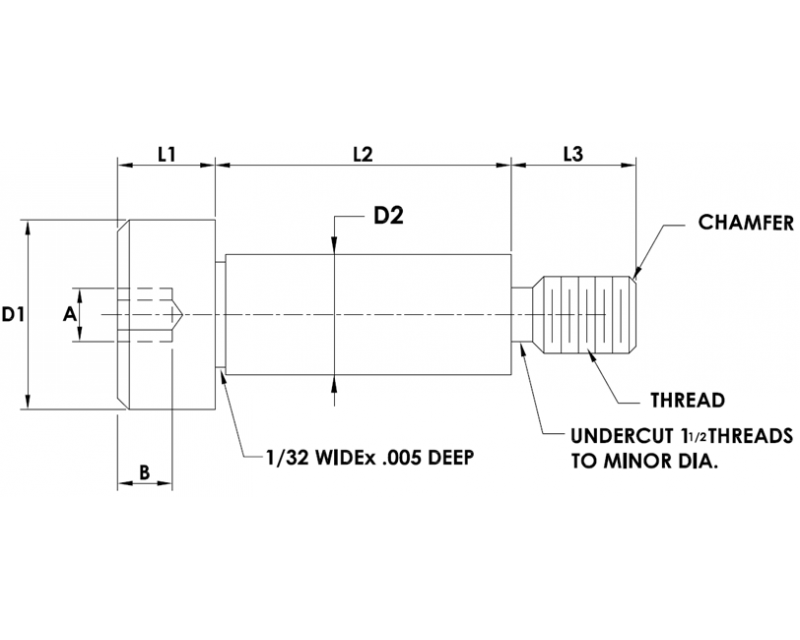

| Part No. | Thread Size |
D1 | D2 | L1 | L2 | L3 | A | B |
| +.004 | +.000 | +.010 | +.002 | +.005 | +.002 | MIN. | ||
| -.004 | -.001 | -.010 | -.000 | -.005 | -.000 | |||
| PS-SO-44001 | 4-40 | 1/4 | .1245 | 1/8 | .1250 | 5/32 | 5/64 | 1/16 |
| PS-SO-44002 | 4-40 | 1/4 | .1245 | 1/8 | .1875 | 5/32 | 5/64 | 1/16 |
| PS-SO-44003 | 4-40 | 1/4 | .1245 | 1/8 | .2500 | 5/32 | 5/64 | 1/16 |
| PS-SO-44004 | 4-40 | 1/4 | .3125 | 1/8 | .1250 | 5/32 | 5/64 | 1/16 |
| PS-SO-44005 | 4-40 | 1/4 | .1245 | 1/8 | .3750 | 5/32 | 5/64 | 1/16 |
| PS-SO-44006 | 4-40 | 1/4 | .1245 | 1/8 | .4375 | 5/32 | 5/64 | 1/16 |
| PS-SO-44007 | 4-40 | 1/4 | .1245 | 1/8 | .1250 | 5/32 | 5/64 | 1/16 |
| PS-SO-63201 | 6-32 | 9/32 | .1560 | 1/8 | .1250 | 3/16 | 3/32 | 5/64 |
| PS-SO-63202 | 6-32 | 9/32 | .1560 | 1/8 | .1875 | 3/16 | 3/32 | 5/64 |
| PS-SO-63203 | 6-32 | 9/32 | .1560 | 1/8 | .2500 | 3/16 | 3/32 | 5/64 |
| PS-SO-63204 | 6-32 | 9/32 | .1560 | 1/8 | .3125 | 3/16 | 3/32 | 5/64 |
| PS-SO-63205 | 6-32 | 9/32 | .1560 | 1/8 | .3750 | 3/16 | 3/32 | 5/64 |
| PS-SO-63206 | 6-32 | 9/32 | .1560 | 1/8 | .4375 | 3/16 | 3/32 | 5/64 |
| PS-SO-63207 | 6-32 | 9/32 | .1560 | 1/8 | .5000 | 3/16 | 3/32 | 5/64 |
| PS-SO-63208 | 6-32 | 9/32 | .1560 | 1/8 | .5625 | 3/16 | 3/32 | 5/64 |
| PS-SO-63209 | 6-32 | 9/32 | .1560 | 1/8 | .6250 | 3/16 | 3/32 | 5/64 |
| PS-SO-63210 | 6-32 | 9/32 | .1560 | 1/8 | .6875 | 3/16 | 3/32 | 5/64 |
| PS-SO-63211 | 6-32 | 9/32 | .1560 | 1/8 | .7500 | 3/16 | 3/32 | 5/64 |
| PS-SO-83201 | 8-32 | 5/16 | .1870 | 5/32 | .1250 | 3/16 | 3/32 | 5/64 |
| PS-SO-83202 | 8-32 | 5/16 | .1870 | 5/32 | .1875 | 3/16 | 3/32 | 5/64 |
| PS-SO-83203 | 8-32 | 5/16 | .1870 | 5/32 | .2500 | 3/16 | 3/32 | 5/64 |
| PS-SO-83204 | 8-32 | 5/16 | .1870 | 5/32 | .3125 | 3/16 | 3/32 | 5/64 |
| PS-SO-83205 | 8-32 | 5/16 | .1870 | 5/32 | .3750 | 3/16 | 3/32 | 5/64 |
| PS-SO-83206 | 8-32 | 5/16 | .1870 | 5/32 | .4375 | 3/16 | 3/32 | 5/64 |
| PS-SO-83207 | 8-32 | 5/16 | .1870 | 5/32 | .5000 | 3/16 | 3/32 | 5/64 |
| PS-SO-83208 | 8-32 | 5/16 | .1870 | 5/32 | .5625 | 3/16 | 3/32 | 5/64 |
| PS-SO-83209 | 8-32 | 5/16 | .1870 | 5/32 | .6250 | 3/16 | 3/32 | 5/64 |
| PS-SO-83210 | 8-32 | 5/16 | .1870 | 5/32 | .6875 | 3/16 | 3/32 | 5/64 |
| PS-SO-83211 | 8-32 | 5/16 | .1870 | 5/32 | .7500 | 3/16 | 3/32 | 5/64 |
| PS-SO-83212 | 8-32 | 5/16 | .1870 | 5/32 | .8750 | 3/16 | 3/32 | 5/64 |
| PS-SO-83213 | 8-32 | 5/16 | .1870 | 5/32 | 1.000 | 3/16 | 3/32 | 5/64 |
| PS-SO-83214 | 8-32 | 5/16 | .1870 | 5/32 | 1.250 | 3/16 | 3/32 | 5/64 |
| PS-SO-83215 | 8-32 | 5/16 | .1870 | 5/32 | 1.375 | 3/16 | 3/32 | 5/64 |
| PS-SO-83216 | 8-32 | 5/16 | .1870 | 5/32 | 1.500 | 3/16 | 3/32 | 5/64 |
