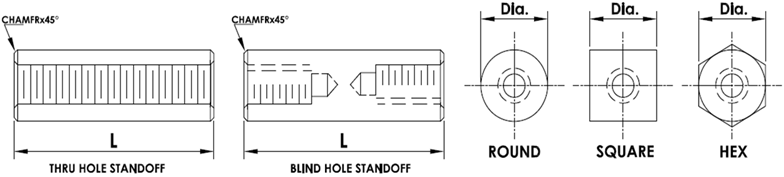

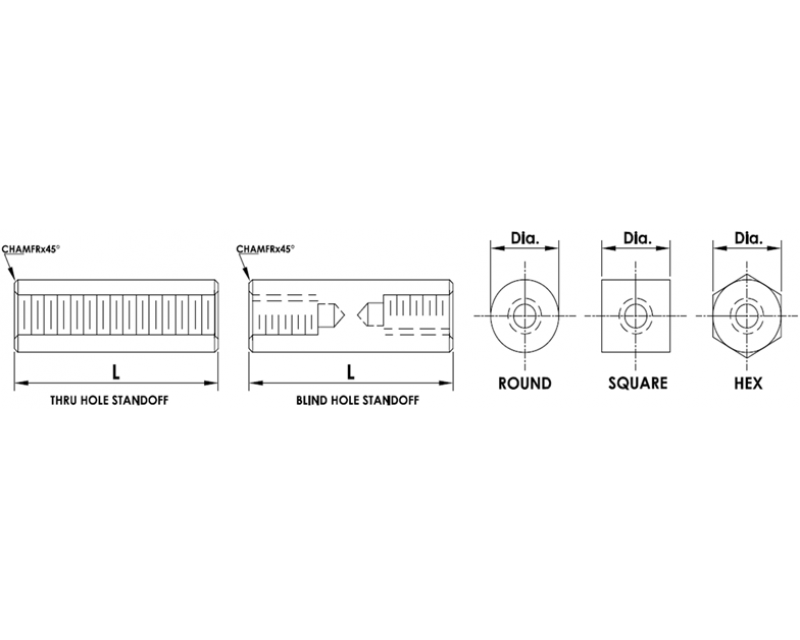

Tolerances:
Diameter: Standard commercial bar stock tolerances.
Length: 0 UP to 100 ± 0.13
From 100 to 150 ± 0.2
Over 150 ± 0.25
Threads:
External - Standard Unified Class 6g
Internal - Standard Unified Class 6h

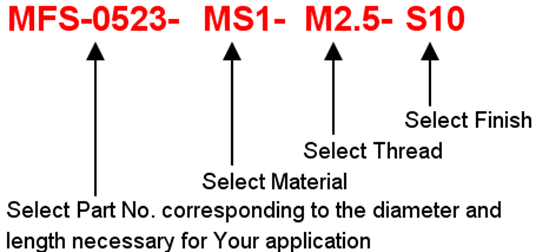

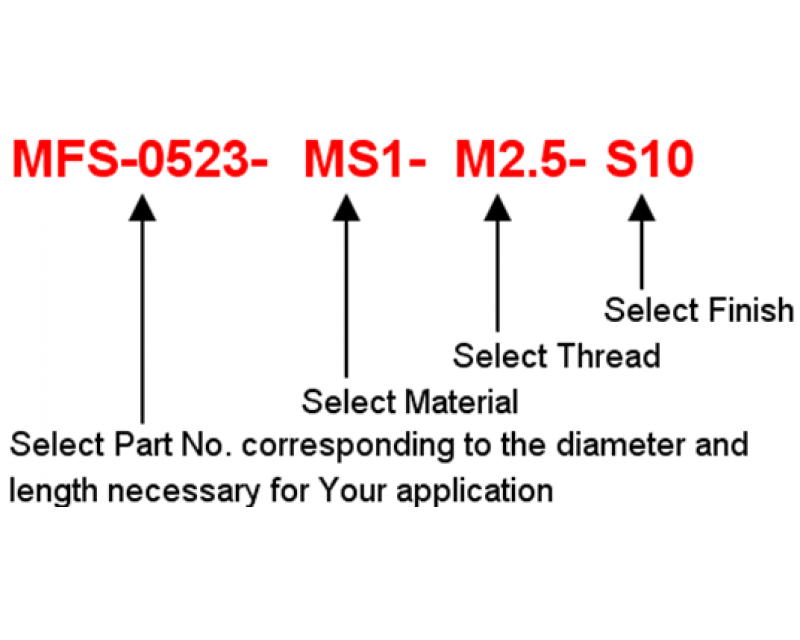

| Material Description | Code | ||
| Round | Square | Hex | |
| Carbon Stell | MS1 | MS2 | MS3 |
| 300 Series Stainless Steel | MSS1 | MSS2 | MSS3 |
| Aluminum | MA1 | MA2 | MA3 |
| Brass | MB1 | MB2 | MB3 |
| Nylon | MN1 | MN2 | MN3 |
| Code | Thread |
| M2.5 | M2.5x0.45 |
| M3 | M3x0.5 |
| M3.5 | M3.5x0.6 |
| M4 | M4x0.7 |
| M5 | M5x0.8 |
| M6 | M6x1.0 |
| Finish Description | Code |
| Nickel Plated | S1 |
| Chrome Plated | S2 |
| Satin Chrome | S6 |
| Zinc Plated | S10 |
| Zinc Yellow Chromate | S11 |
| No Finish | S14 |
| Black Oxide | S22 |
| Black Zinc | S23 |
| Passivate | SB5 |
| Anodize Clear | SA1 |
| Glossy Anodize Clear Clear | SA2 |
| Anodize Black | SA3 |
| Glossy Anodize Black | SA4 |
| Clear lridite | SA5 |
Custom fabrications can be manufactured to meet your special needs.
