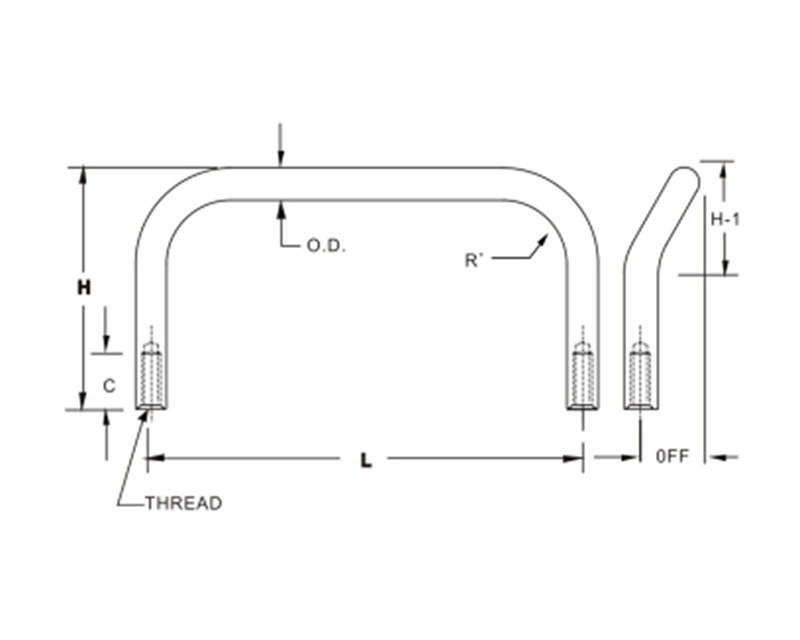

ROUND OFF-SET HANDLES
INTERNAL THREAD
| Part No. |
Dia. |
L |
OFF |
H |
H-1 |
| mm |
mm |
mm |
mm |
mm |
| OFF47001D |
4.76 |
25.4(1") |
8 |
25.4~38.1 |
14.3 |
| OFF47002D |
4.76 |
25.4(1") |
8 |
25.4~38.1 |
14.3 |
| OFF47003D |
4.76 |
50.8(2") |
8 |
25.4~38.1 |
14.3 |
| OFF47004D |
4.76 |
76.2(3") |
8 |
25.4~38.1 |
14.3 |
| Part No. |
Dia. |
L |
OFF |
H |
H-1 |
| mm |
mm |
mm |
mm |
mm |
| OFF63003D |
6.35 |
76.2(3") |
9.5 |
25.4~50.8 |
17.5 |
| OFF63004D |
6.35 |
101.6(4") |
9.5 |
25.4~50.8 |
17.5 |
| OFF63005D |
6.35 |
127(5") |
9.5 |
25.4~50.8 |
17.5 |
| OFF63006D |
6.35 |
152.4(6") |
9.5 |
25.4~50.8 |
17.5 |
| Part No. |
Dia. |
L |
OFF |
H |
H-1 |
| mm |
mm |
mm |
mm |
mm |
| OFF08003D |
8 |
76.2(3") |
12.7 |
33.3~50.8 |
22.2 |
| OFF08004D |
8 |
101.6(4") |
12.7 |
33.3~50.8 |
22.2 |
| OFF08005D |
8 |
127(5") |
12.7 |
33.3~50.8 |
22.2 |
| OFF08006D |
8 |
152.4(6") |
12.7 |
33.3~50.8 |
22.2 |
| Part No. |
Dia. |
L |
OFF |
H |
H-1 |
| mm |
mm |
mm |
mm |
mm |
| OFF95003D |
9.5 |
76.2(3") |
15.9 |
33.3~50.8 |
27 |
| OFF95004D |
9.5 |
101.6(4") |
15.9 |
33.3~50.8 |
27 |
| OFF95005D |
9.5 |
127(5") |
15.9 |
33.3~50.8 |
27 |
| OFF95006D |
9.5 |
152.4(6") |
15.9 |
33.3~50.8 |
27 |
