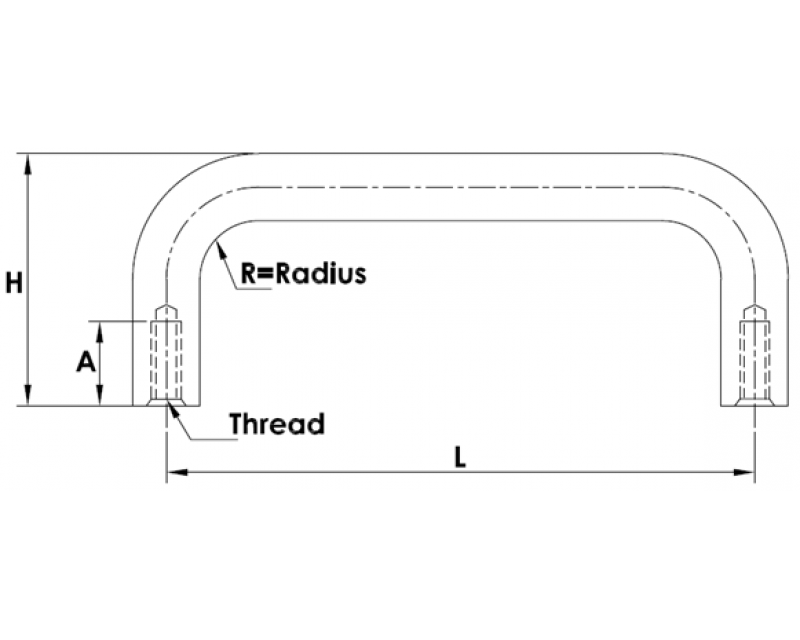

ROUND HANDLES INTERNAL THREAD(mm)

ROUND HANDLES INTERNAL THREAD(mm)

INTERNAL THREAD

产品介绍

Part No.	Dia.	L	H
Part No.	mm	mm	mm
03020D	3.175	20.62	12.7
03002D	3.175	50.8	19-32
030025D	3.175	63.5	19-32
04021D	4	21	19-38.1
04022D	4	22	19-38.1
04025D	4	25	19-38.1
04001D	4	25.4	19-38.1
04031D	4	31.75	19-38.1
04032D	4	32	19-38.1
04038D	4	38.1	19-38.1
04003D	4	76.2	19-38.1
04090D	4	90	19-38.1
04098D	4	98.5	19-38.1
04004D	4	101.6	19-38.1
47025D	4.76	25	19-38.1
47001D	4.76	25.4	19-38.1
47026D	4.76	26.7	19-38.1
47028D	4.76	28	19-38.1
47038D	4.76	38.1	19-38.1
47044D	4.76	44,45	19-38.1
47002D	4.76	50.8	19-38.1
47063D	4.76	63.5	19-38.1
47003D	4.76	76.2	19-38.1
47082D	4.76	82.5	19-38.1
47006D	4.76	152.4	19-38.1
05025D	5	25	19-38.1
05001D	5	25.4	19-38.1
05029D	5	29	19-38.1
05032D	5	32	19-38.1
05002D	5	50.8	19-38.1
05055D	5	55	19-38.1
05060D	5	60	19-38.1
05003D	5	76.2	19-38.1
05095D	5	95.6	19-38.1
05004D	5	101.6	19-38.1
06030D	6	30	19-38.1
06079D	6	79	19-38.1
63025D	6.35	25	25-38.1
63028D	6.35	28.6	25-38.1

Part No.	Dia.	L	H
Part No.	mm	mm	mm
63030D	6.35	30	25-38.1
63032D	6.35	32	25-38.1
63033D	6.35	33.5	25-38.1
63038D	6.35	38.1	25-38.1
63039D	6.35	39	25-38.1
63040D	6.35	40	25-38.1
63043D	6.35	43.2	25-38.1
63044D	6.35	44.45	25-38.1
63051D	6.35	51	25-38.1
63054D	6.35	54	25-38.1
63055D	6.35	55.5	25-38.1
63060D	6.35	60	25-38.1
63063D	6.35	63	25-38.1
630025D	6.35	63.5	25-38.1
63064D	6.35	64	25-38.1
63070D	6.35	70	25-38.1
63071D	6.35	71.2	25-38.1
63003D	6.35	76.2	25-38.1
63082D	6.35	82.9	25-38.1
630035D	6.35	88.9	25-38.1
63090D	6.35	90	25-38.1
63092D	6.35	92	25-38.1
63096D	6.35	96	25-38.1
63098D	6.35	98	25-38.1
63100D	6.35	100	25-38.1
63004D	6.35	101.6	25-38.1
63102D	6.35	102	25-38.1
63110D	6.35	110	25-38.1
63115D	6.35	115	25-38.1
63117D	6.35	117	25-38.1
63005D	6.35	127	25-38.1
63128D	6.35	128	25-38.1
63137D	6.35	137	25-38.1
63006D	6.35	152.4	25-38.1
63234D	6.35	234	25-38.1
07067D	7	67	25-38.1
07140D	7	140	25-38.1
08017D	8	17.4	25-38.1
08030D	8	30	25-38.1

Part No.	Dia.	L	H
Part No.	mm	mm	mm
08038D	8	38.1	25-38.1
08040D	8	40	25-38.1
08048D	8	48	25-38.1
08050D	8	50	25-38.1
08055D	8	55	25-38.1
08057D	8	57	25-38.1
080025D	8	63.5	25-38.1
08064D	8	64	25-38.1
08070D	8	70	25-38.1
08003D	8	76.2	25-38.1
08080D	8	80	25-38.1
08088D	8	88	25-38.1
080035D	8	88.9	25-38.1
08090D	8	90	25-38.1
08092D	8	92	25-38.1
08096D	8	96	25-38.1
08004D	8	101.6	25-38.1
08108D	8	108	25-38.1
08110D	8	110	25-38.1
080045D	8	114.3	25-38.1
08120D	8	120	25-38.1
08005D	8	127	25-38.1
08128D	8	128	25-38.1
08129D	8	129	25-38.1
08133D	8	133	25-38.1
08140D	8	140	25-38.1
08006D	8	152.4	25-38.1
08160D	8	160	25-38.1
08007D	8	177.8	25-38.1
08180D	8	180	25-38.1
08192D	8	192	25-38.1
08008D	8	203.2	25-38.1
08237D	8	237	25-38.1
08240D	8	240	25-38.1
86063D	8.6	63.5	30-45
09150D	9	150	30-45
95064D	9.5	64	30-45
95003D	9.5	76.2	30-45
950035D	9.5	88.9	30-45

Part No.	Dia.	L	H
Part No.	mm	mm	mm
95096D	9.5	96	30-45
95100D	9.5	100	30-45
95004D	9.5	101.6	30-45
95005D	9.5	127	30-45
95128D	9.5	128	30-45
95133D	9.5	133.4	30-45
95134D	9.5	134.6	30-45
95006D	9.5	152.4	30-45
95153D	9.5	153	30-45
95160D	9.5	160	30-45
95007D	9.5	177.8	30-45
95192D	9.5	192	30-45
95008D	9.5	203.2	30-45
95224D	9.5	224	30-45
95256D	9.5	256	30-45
95288D	9.5	288	30-45
95352D	9.5	352	30-45
10064D	10	64	30-45
10003D	10	76.2	30-45
100035D	10	88.9	30-45
10092D	10	92.5	30-45
10096D	10	96	30-45
10100D	10	100	30-45
10004D	10	101.6	30-45
10120D	10	120	30-45
10005D	10	127	30-45
10128D	10	128	30-45
10150D	10	150	30-45
10006D	10	152.4	30-45
10160D	10	160	30-45
10192D	10	192	30-45
10224D	10	224	30-45
10256D	10	256	30-45
10288D	10	288	30-45
10352D	10	352	30-45
12004D	12.7	101.6	30-76.2
20200D	20	200	45-76.2
25203D	25.4	203.2	45-76.2
