The SanKong Handles collection of Round Handles External Thread. A wide range of styles and metal finishes are available.

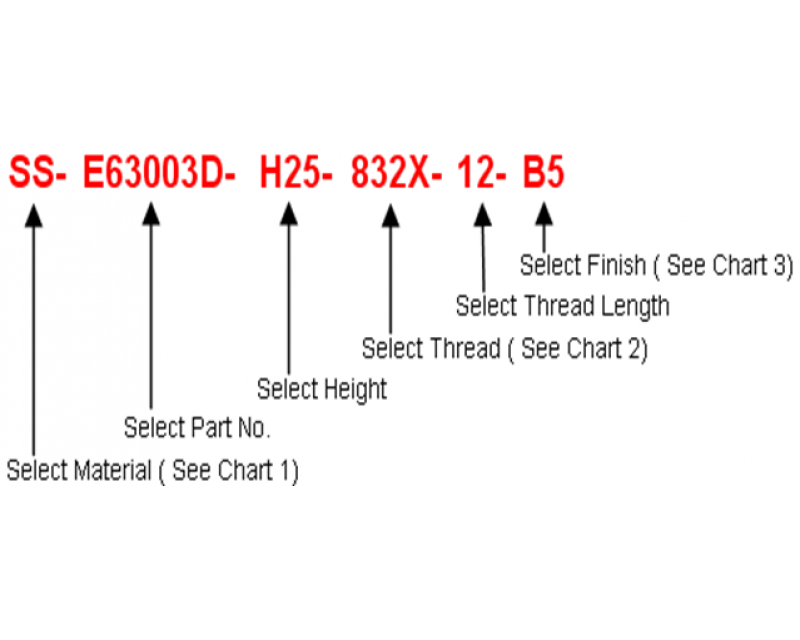

How to order External Thread Round Handles
| Part No. | Dia. | L | H | TL |
| mm | mm | mm | mm | |
| E47001D | 4.76 | 25.4(1") | 25-51 | 4-12.7 |
| E470015D | 4.76 | 38.1(1.5") | 25-51 | 4-12.7 |
| E47002D | 4.76 | 50.8(2") | 25-51 | 4-12.7 |
| E470025D | 4.76 | 63.5(2.5") | 25-51 | 4-12.7 |
| E47003D | 4.76 | 76.2(3") | 25-51 | 4-12.7 |
| E47004D | 4.76 | 101.6(4") | 25-51 | 4-12.7 |
| E47005D | 4.76 | 127(5") | 25-51 | 4-12.7 |
| E47006D | 4.76 | 152.4(6") | 25-51 | 4-12.7 |
| E63001D | 6.35 | 25.4(1") | 25-51 | 6-12.7 |
| E63002D | 6.35 | 50.8(2") | 25-51 | 6-12.7 |
| E630025D | 6.35 | 63.5(2.5") | 25-51 | 6-12.7 |
| E63003D | 6.35 | 76.2(3") | 25-51 | 6-12.7 |
| E630035D | 6.35 | 88.9(3.5") | 25-51 | 6-12.7 |
| E63004D | 6.35 | 101.6(4") | 25-51 | 6-12.7 |
| E63005D | 6.35 | 127(5") | 25-51 | 6-12.7 |
| E63006D | 6.35 | 152.4(6") | 25-51 | 6-12.7 |
| E080025D | 8 | 63.5(2.5") | 30-57 | 8-24 |
| E08003D | 8 | 76.2(3") | 30-57 | 8-24 |
| E080035D | 8 | 88.9(3.5") | 30-57 | 8-24 |
| E08004D | 8 | 101.6(4") | 30-57 | 8-24 |
| E08108D | 8 | 108(4.25") | 30-57 | 8-24 |
| E080045D | 8 | 114.3(4.5") | 30-57 | 8-24 |
| E08005D | 8 | 127(5") | 30-57 | 8-24 |
| E08006D | 8 | 152.4(6") | 30-57 | 8-24 |
| E95003D | 9.5 | 76.2(2.5") | 30-57 | 9.5-24 |
| E950035D | 9.5 | 88.9(3.5") | 30-57 | 9.5-24 |
| E95004D | 9.5 | 101.6(4") | 30-57 | 9.5-24 |
| E95005D | 9.5 | 127(5") | 30-57 | 9.5-24 |
| E95006D | 9.5 | 152.4(6") | 30-57 | 9.5-24 |
