Handle Ferrules

Handle Ferrules

The SanKong Handles collection of Handle Ferrules. A wide range of styles and metal finishes are available.Custom modified products are available.

Introduction

Custom fabrications can be manufactured to meet your special needs.

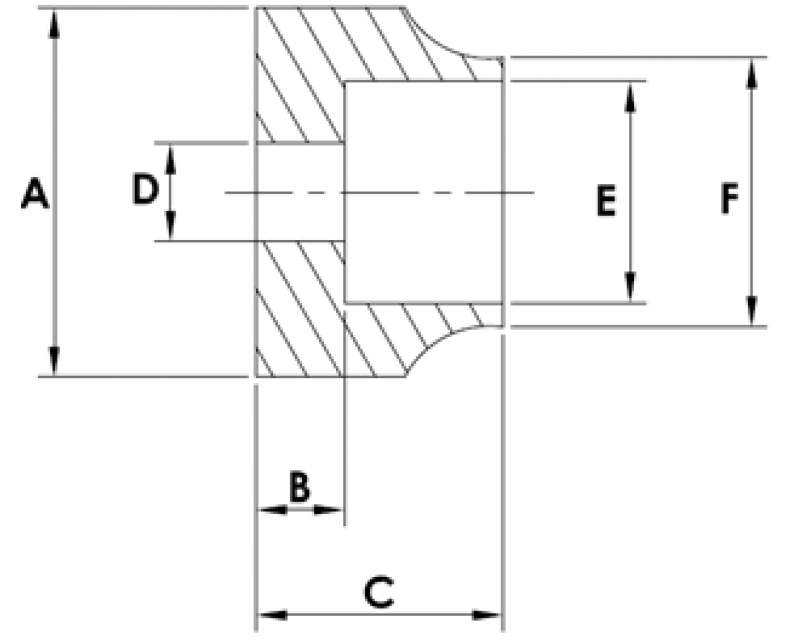

STYLE 1 American Standard

Part No.	A	B	C	D	E	F
	+.005	+.005	+.005	+.005	+.005	+.015
	-.005	-.005	-.005	-.005	-.005	-.015
FH1-01	1/4	.046	.125	.116	.136	13/64
FH1-02	1/4	.046	.125	.116	.161	13/64
FH1-03	5/16	.062	.125	.141	.203	17/64
FH1-04	3/8	.046	.125	.141	.260	5/16
FH1-05	3/8	.062	.187	.204	.260	5/16
FH1-06	7/16	.062	.187	.204	.260	5/16
FH1-07	1/2	.062	.250	.187	.260	11/32
FH1-08	15/32	.062	.250	.221	.320	13/32
FH1-09	9/16	.062	.250	.221	.320	13/32
FH1-10	5/8	.093	.375	.250	.385	15/32
FH1-11	3/4	.093	.375	.315	.515	39/64

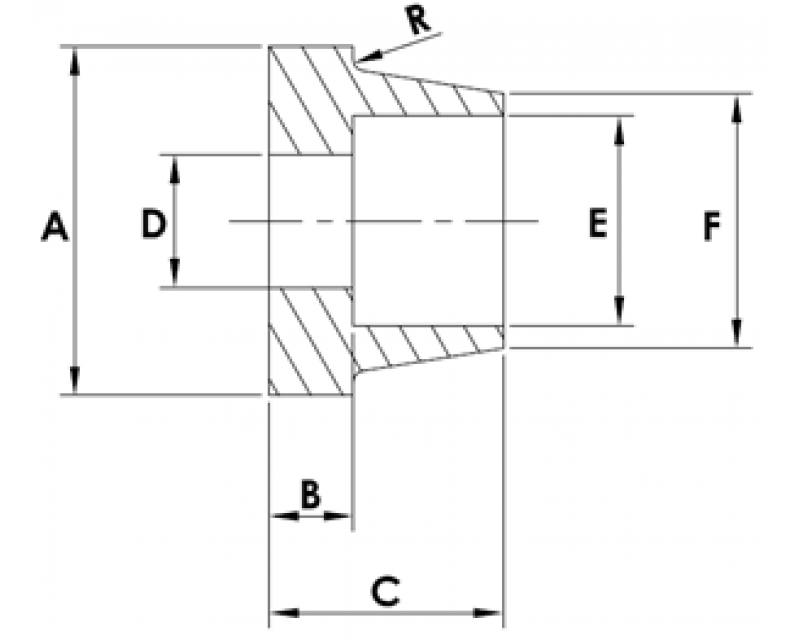

STYLE 2 American Standard

Part No.	A	B	C	D	E	F
	+.005	+.005	+.005	+.005	+.005	+.015
	-.005	-.005	-.005	-.005	-.005	-.015
FH2-01	1/4	.047	.125	.109	.161	13/64
FH2-02	5/16	.062	.125	.141	.203	17/64
FH2-03	3/8	.062	.187	.203	.260	.5/16
FH2-04	9/16	.062	.250	.219	.320	13/32
FH2-05	3/4	.094	.312	.196	.320	13/32
FH2-06	7/8	.094	.312	.196	.385	9/16
FH2-07	7/8	.094	.312	.219	.385	9/16
FH2-08	7/8	.187	.562	.275	.510	5/8

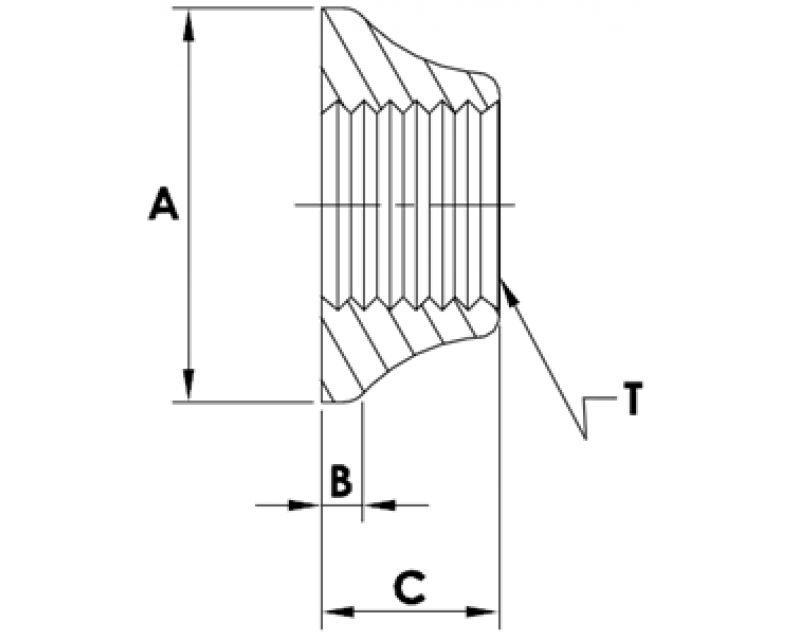

STYLE 3 American Standard

Part No.	Thread	A	B	C
		+.005	+.005	+.005
		-.005	-.005	-.005
FH6-01	5/16-18	.5/8	.1/32	.250
FH6-02	3/8-24	3/4	1/16	.321

STYLE 4 American Standard

Part No.	A	B	C	D	E	F
	+.005	+.005	+.005	+.005	+.005	+.015
	-.005	-.005	-.005	-.005	-.005	-.015
FH4-01	5/8	.062	.375	.201	.257	21/64
FH4-02	3/4	.062	.375	.201	.383	29/64
FH4-03	3/4	.062	.375	.201	.383	29/64

STYLE 5 American Standard

Part No.	A	B	C	D	E	F
	+.005	+.005	+.005	+.005	+.005	+.015
	-.005	-.005	-.005	-.005	-.005	-.015
FH5-01	9/16	.093	.312	.203	.323	7/16
FH5-02	5/8	.125	.437	.281	.390	7/16
FH5-03	3/4	.187	.562	.328	.510	19/32

STYLE 6 American Standard

Part No.	A	B	C	D	E
	+.005	+.005	+.005	+.005	+.005
	-.005	-.005	-.005	-.005	-.005
FH6-01	3/4	.093	.312	.196	.320
