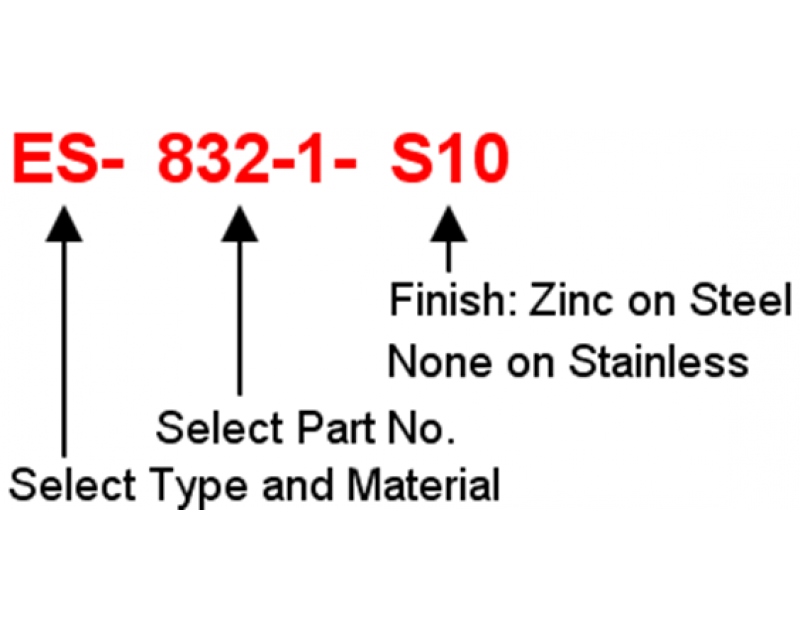

How to order American Standard Self-Clinching Nuts
The SanKong Electronic Hardware Collection of Self-Clinching Nuts are American Standard dimensioned parts, custom modified are available, to used on Aerospace, Automotive , Computers, Construction Equipment, Off-Highway Vehicles, Farm Equipment, Electronic Enclosures, Exhibits/Signs, Food Equipment, Furniture, HVAC, Industrial Enclosures, Lawn/Garden Equipment, Medical, Networking, Railway, Telecommunications.

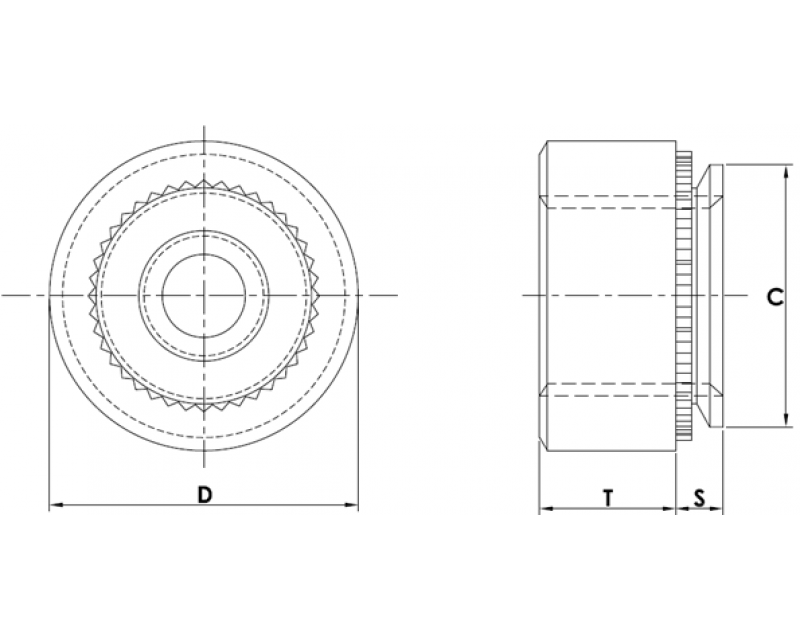

How to order American Standard Self-Clinching Nuts
| Type | Part No. | Thread Size |
S Max. |
Min Sheet Thickness |
Hole Size in Sheet +.003 -.000 |
C Max. |
D ±.010 |
T ±.010 |
Min. distance centre line hole to sheet edge |
|
| Material | ||||||||||
| Carbon Steel |
Stainless Steel |
|||||||||
| ES | ECLS | 256-0 | 2-56 | .030 | .030 | .166 | .165 | .250 | .070 | .190 |
| 256-1 | .038 | .040 | ||||||||
| 256-2 | .054 | .056 | ||||||||
| ES | ECLS | 348-0 | 3-48 | .030 | .030 | .166 | .165 | .250 | .070 | .190 |
| 348-1 | .038 | .040 | ||||||||
| 348-2 | .054 | .056 | ||||||||
| ES | ECLS | 440-0 | 4-40 | .030 | .030 | .166 | .165 | .250 | .070 | .190 |
| 440-1 | .038 | .040 | ||||||||
| 440-2 | .054 | .056 | ||||||||
| 440-3 | .087 | .091 | ||||||||
| ES | ECLS | 632-0 | 6-32 | .030 | .030 | .1875 | .187 | .280 | .070 | .220 |
| 632-1 | .038 | .040 | ||||||||
| 632-2 | .054 | .056 | ||||||||
| 632-3 | .087 | .091 | ||||||||
| ES | ECLS | 832-0 | 8-32 | .030 | .030 | .213 | .212 | .310 | .090 | .270 |
| 832-1 | .038 | .040 | ||||||||
| 832-2 | .054 | .056 | ||||||||
| 832-3 | .087 | .091 | ||||||||
| ES | ECLSS | 1024-0 | 10-24 | .030 | .030 | .250 | .249 | .340 | .090 | .280 |
| 1024-1 | .038 | .040 | ||||||||
| 1024-2 | .054 | .056 | ||||||||
| 1024-3 | .087 | .091 | ||||||||
| ES | ECLSS | 1032-0 | 10-32 | .030 | .030 | .250 | .249 | .340 | .090 | .280 |
| 1032-1 | .038 | .040 | ||||||||
| 1032-2 | .054 | .056 | ||||||||
| 1032-3 | .087 | .091 | ||||||||
| ES | ECLS | 1224-1 | 12-24 | .038 | .040 | .277 | .276 | .370 | .130 | .310 |
| 1224-2 | .054 | .056 | ||||||||
| 1224-3 | .087 | .091 | ||||||||
| ES | ECLS | 1420-0 | 1/4-20 | .045 | .047 | .344 | .343 | .440 | .170 | .340 |
| 1420-1 | .054 | .056 | ||||||||
| 1420-2 | .087 | .091 | ||||||||
| 1420-3 | .120 | .125 | ||||||||
| ES | ECLS | 1428-1 | 1/4-28 | .054 | .056 | .344 | .343 | .440 | .170 | .340 |
| 1428-2 | .087 | .091 | ||||||||
| 1428-3 | .120 | .125 | ||||||||
| ES | ECLS | 51618-1 | 5/16-18 | .054 | .056 | .413 | .412 | .500 | .230 | .380 |
| 51618-2 | .087 | .091 | ||||||||
| 51618-3 | .120 | .125 | ||||||||
| ES | ECLS | 51624-1 | 5/16-24 | .054 | .056 | .413 | .412 | .500 | .230 | .380 |
| 51624-2 | .087 | .091 | ||||||||
| 51624-3 | .120 | .125 | ||||||||
| ES | ECLS | 3816-1 | 3/8-16 | .870 | .091 | .500 | .499 | .560 | .270 | .440 |
| 3816-2 | .120 | .125 | ||||||||
| 3816-3 | .235 | .250 | ||||||||
| ES | ECLS | 3824-1 | 3/8-24 | .870 | .091 | .500 | .499 | .560 | .270 | .440 |
| 3824-2 | .120 | .125 | ||||||||
| 3824-3 | .235 | .250 | ||||||||
| ES | ECLS | 1213-1 | 1/2-13 | .120 | .125 | .656 | .655 | .810 | .360 | .360 |
| 1213-2 | .235 | .250 | ||||||||
| ES | ECLS | 1220-1 | 1/2-20 | .120 | .125 | .656 | .655 | .810 | .360 | .360 |
| 1220-2 | .235 | .250 | ||||||||
