Metric Standard Swage Standoffs

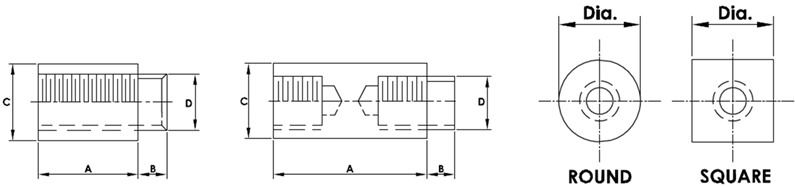

Metric Standard Swage Standoffs

The SanKong Electronic Hardware Collection of Swage Standoffs are Metric Standard dimensioned parts, custom modified are available, to used on Aerospace, Automotive , Computers, Construction Equipment, Off-Highway Vehicles, Farm Equipment, Electronic Enclosures, Exhibits/Signs, Food Equipment, Furniture, HVAC, Industrial Enclosures, Lawn/Garden Equipment, Medical, Networking, Railway, Telecommunications.

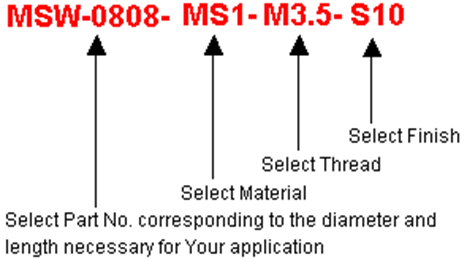

How to order Metric Standard Swage Standoffs
Tolerances:
Diameter: Standard commercial bar stock tolerances.
Length: 0 UP to 100 ± 0.13
From 100 to 150 ± 0.2
Over 150 ± 0.25
Threads:
External - Standard Unified Class 6g
Internal - Standard Unified Class 6h

Material Description Code
Round Square
Carbon Stell MS1 MS2
300 Series Stainless Steel MSS1 MSS2
Aluminum MA1 MA2
Brass MB1 MB2
Nylon MN1 MN2



Code Thread
M2.5 M2.5x0.45
M3 M3x0.5
M3.5 M3.5x0.6
M4 M4x0.7
M5 M5x0.8



Code Shank
Length
Board
Thickness
A 1.9 0.8
B 2.7 1.6
C 3.4 2.4
D 4.2 3.2
Finish Description Code
Nickel Plated S1
Chrome Plated S2
Satin Chrome S6
Zinc Plated S10
Zinc Yellow Chromate S11
No Finish S14
Black Oxide S22
Black Zinc S23
Passivate SB5
Anodize Clear SA1
Glossy Anodize Clear Clear SA2
Anodize Black SA3
Glossy Anodize Black SA4
Clear lridite SA5

Custom fabrications can be manufactured to meet your special needs.
