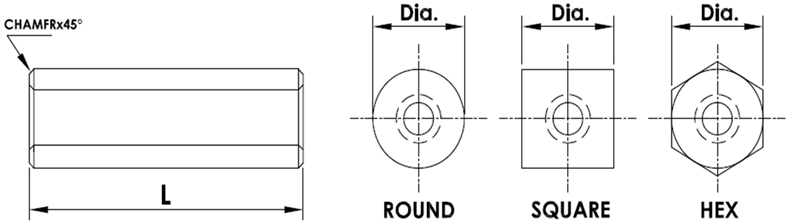

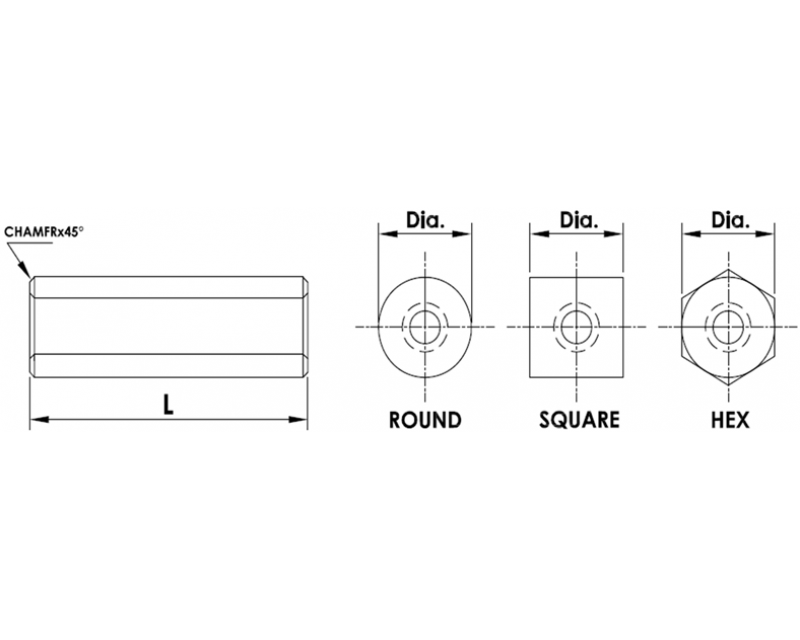

Tolerances:
Diameter: Standard commercial bar stock tolerances.
Length: 0 UP to 4" ± .005
From 4" to 6" ± .008
Over 6" ± .010
Threads:
External - Standard Unified Class 2A
Internal - Standard Unified Class 2B
The SanKong Electronic Hardware Collection of Standard Spacers are SAE and metric dimensioned parts, custom modified are available, to used on Aerospace, Automotive , Computers, Construction Equipment, Off-Highway Vehicles, Farm Equipment, Electronic Enclosures, Exhibits/Signs, Food Equipment, Furniture, HVAC, Industrial Enclosures, Lawn/Garden Equipment, Medical, Networking, Railway, Telecommunications.

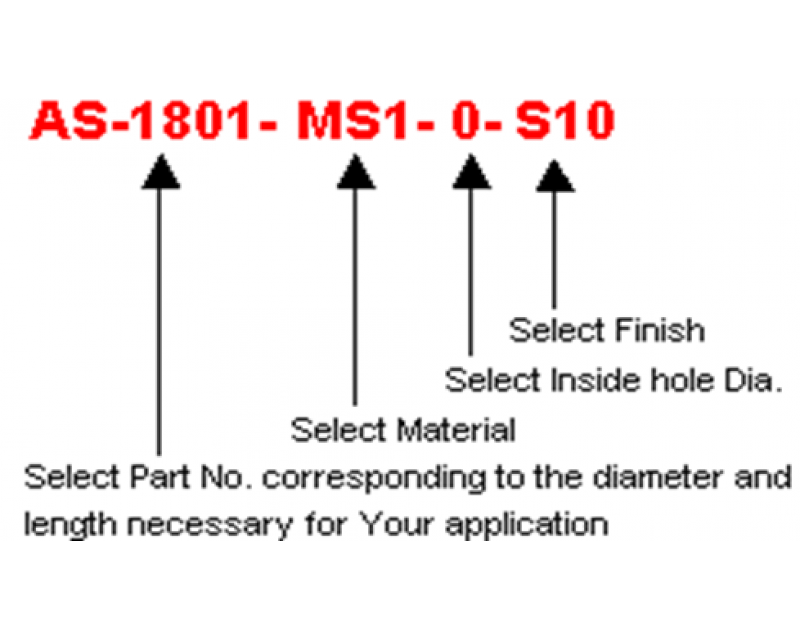

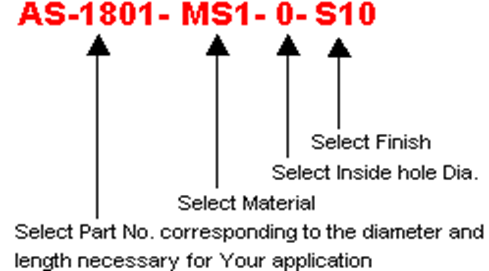

How to order American Standard Clear Hole Spacers.
Select Part No. corresponding to the diameter and length necessary for Your application
Material Description | Code | ||
Round | Square | Hex | |
Carbon Stell | MS1 | MS2 | MS3 |
300 Series Stainless Steel | MSS1 | MSS2 | MSS3 |
Aluminum | MA1 | MA2 | MA3 |
Brass | MB1 | MB2 | MB3 |
Nylon | MN1 | MN2 | MN3 |
Code | Thread | Inside hole Dia. +.010 -.000 |
0 | 0-80 | .640 |
2 | 2-56 | .090 |
4 | 4-40 | .115 |
6 | 6-32 | .140 |
8 | 8-32 | .166 |
10 | 10-32 | .166 |
12 | 12-24 | .218 |
1/4 | 1/4-20 | .252 |
5/16 | 5/16-18 | .315 |
3/8 | 3/8-16 | .380 |
7/16 | 7/16-14 | .440 |
1/2 | 1/2-20 | .505 |
Finish Description | Code |
Nickel Plated | S1 |
Chrome Plated | S2 |
Satin Chrome | S6 |
Zinc Plated | S10 |
Zinc Yellow Chromate | S11 |
No Finish | S14 |
Black Oxide | S22 |
Black Zinc | S23 |
Passivate | SB5 |
Anodize Clear | SA1 |
Glossy Anodize Clear Clear | SA2 |
Anodize Black | SA3 |
Glossy Anodize Black | SA4 |
Clear lridite | SA5 |
Custom fabrications can be manufactured to meet your special needs.
