Tolerances:
Diameter: Standard commercial bar stock tolerances.
Length: 0 UP to 100 ± 0.13
From 100 to 150 ± 0.2
Over 150 ± 0.25
Threads:
External - Standard Unified Class 6g
Internal - Standard Unified Class 6h

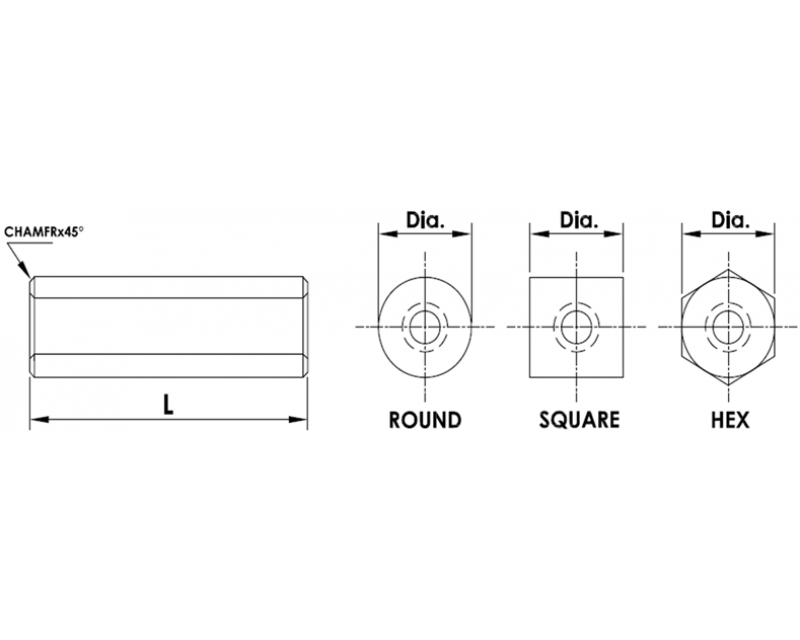

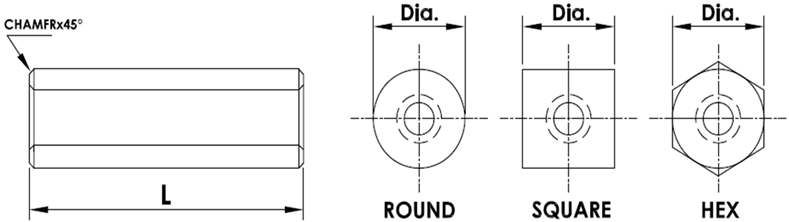

The SanKong Electronic Hardware Collection of Metric Standard Spacers(mm) are SAE and metric dimensioned parts, custom modified are available, to used on Aerospace, Automotive , Computers, Construction Equipment, Off-Highway Vehicles, Farm Equipment, Electronic Enclosures, Exhibits/Signs, Food Equipment, Furniture, HVAC, Industrial Enclosures, Lawn/Garden Equipment, Medical, Networking, Railway, Telecommunications.

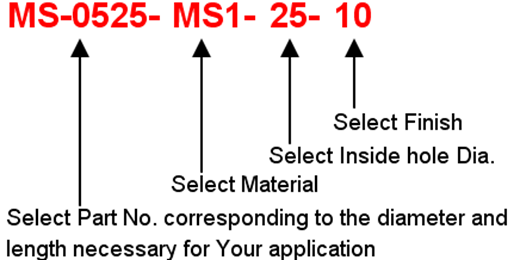

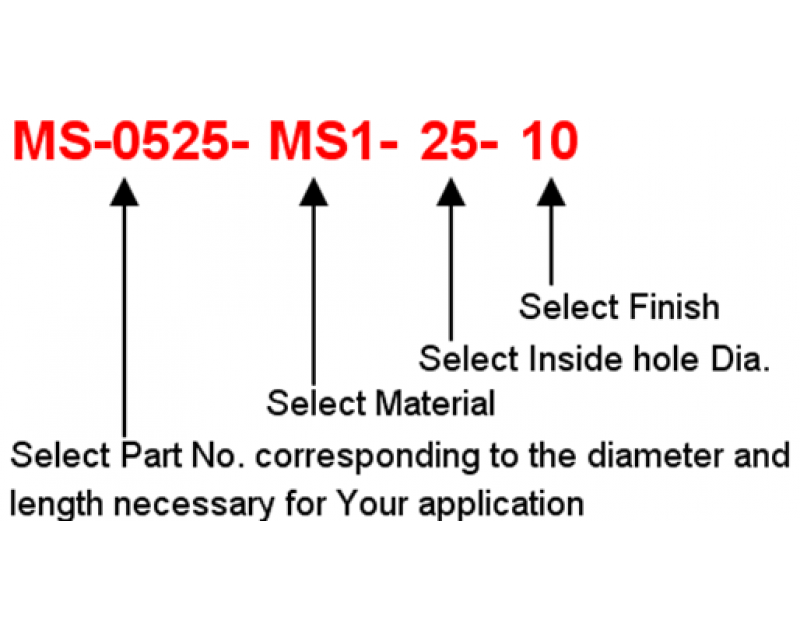

Material Description | Code | ||
Round | Square | Hex | |
Carbon Stell | MS1 | MS2 | MS3 |
300 Series Stainless Steel | MSS1 | MSS2 | MSS3 |
Aluminum | MA1 | MA2 | MA3 |
Brass | MB1 | MB2 | MB3 |
Nylon | MN1 | MN2 | MN3 |
Code | Thread | Inside hole Dia. +.03 -.00 |
25 | M2.5x0.45 | 2.7 |
3 | M3x0.5 | 3.2 |
35 | M3.5x0.6 | 3.7 |
4 | M4x0.7 | 4.3 |
5 | M5x0.8 | 5.3 |
6 | M6x1 | 6.4 |
8 | M8x1.25 | 8.4 |
10 | M10x1.5 | 10.5 |
12 | M12 | 13 |
14 | M14 | 5 |
Finish Description | Code |
Nickel Plated | S1 |
Chrome Plated | S2 |
Satin Chrome | S6 |
Zinc Plated | S10 |
Zinc Yellow Chromate | S11 |
No Finish | S14 |
Black Oxide | S22 |
Black Zinc | S23 |
Passivate | SB5 |
Anodize Clear | SA1 |
Glossy Anodize Clear Clear | SA2 |
Anodize Black | SA3 |
Glossy Anodize Black | SA4 |
Clear lridite | SA5 |
Custom fabrications can be manufactured to meet your special needs.
