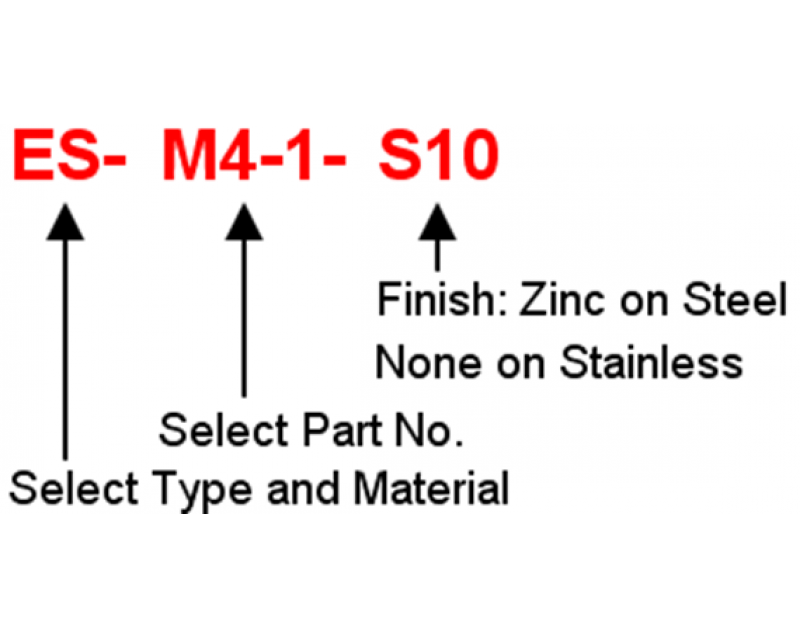

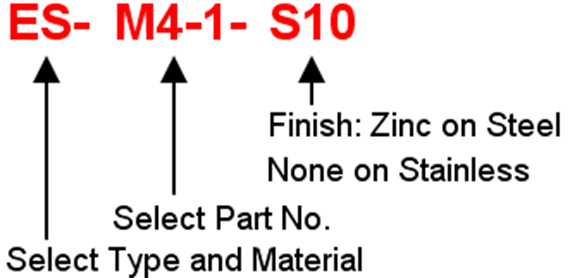

How to order Metric Standard Self-Clinching Nuts
The SanKong Electronic Hardware Collection of Self-Clinching Nuts are Metric Standard dimensioned parts, custom modified are available, to used on Aerospace, Automotive , Computers, Construction Equipment, Off-Highway Vehicles, Farm Equipment, Electronic Enclosures, Exhibits/Signs, Food Equipment, Furniture, HVAC, Industrial Enclosures, Lawn/Garden Equipment, Medical, Networking, Railway, Telecommunications.
How to order Metric Standard Self-Clinching Nuts
| Type | Part No. | Thread Size |
S Max. |
Min Sheet Thickness |
Hole Size in Sheet +.008 -.000 |
C Max. |
D ±.025 |
T ±.025 |
Min. distance centre line hole to sheet edge |
|
| Material | ||||||||||
| Carbon Steel |
Stainless Steel |
|||||||||
| ES | ECLS | M2-0 | M2x0.4 | 0.77 | 0.8 | 4.22 | 4.2 | 6.3 | 1.5 | 4.8 |
| M2-1 | 0.97 | 1 | ||||||||
| M2-2 | 1.38 | 1.4 | ||||||||
| ES | ECLS | M2.5-0 | M2.5x0.45 | 0.77 | 0.8 | 4.22 | 4.2 | 6.3 | 1.5 | 4.8 |
| M2.5-1 | 0.97 | 1 | ||||||||
| M2.5-2 | 1.38 | 1.4 | ||||||||
| ES | ECLS | M3-0 | M3x0.5 | 0.77 | 0.8 | 4.22 | 4.2 | 6.3 | 1.5 | 4.8 |
| M3-1 | 0.97 | 1 | ||||||||
| M3-2 | 1.38 | 1.4 | ||||||||
| ES | ECLS | M3.5-0 | M3.5x0.6 | 0.77 | 0.8 | 4.75 | 4.73 | 7.1 | 1.5 | 5.6 |
| M3.5-1 | 0.97 | 1 | ||||||||
| M3.5-2 | 1.38 | 1.4 | ||||||||
| ES | ECLS | M4-0 | M4x0.7 | 0.77 | 0.8 | 5.41 | 5.38 | 7.9 | 2 | 6.9 |
| M4-1 | 0.97 | 1 | ||||||||
| M4-2 | 1.38 | 1.4 | ||||||||
| ES | ECLSS | M5-0 | M5x0.8 | 0.77 | 0.8 | 6.35 | 6.33 | 8.7 | 2 | 7.1 |
| M5-1 | 0.97 | 1 | ||||||||
| M5-2 | 1.38 | 1.4 | ||||||||
| ES | ECLS | M6-0 | M6x1 | 0.89 | 0.92 | 8.75 | 8.73 | 11.05 | 4.08 | 8.6 |
| M6-1 | 1.15 | 1.2 | ||||||||
| M6-2 | 1.38 | 1.4 | ||||||||
| M6-2 | 2.21 | 2.3 | ||||||||
| ES | ECLS | M8-1 | M8x1.25 | 1.38 | 1.4 | 10.5 | 10.47 | 12.65 | 5.47 | 9.7 |
| M8-2 | 2.21 | 2.3 | ||||||||
| ES | ECLS | M10-1 | M10x1.5 | 2.21 | 2.31 | 14 | 13.97 | 17.35 | 7.48 | 13.5 |
| M10-2 | 3.05 | 3.18 | ||||||||
